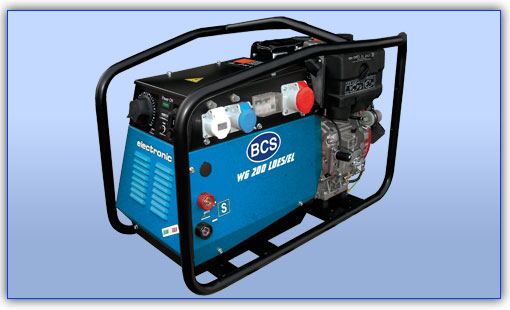

ENGINE DRIVEN WELDER WG 200 LDES/EL



  • Arc welding source in D.C. welding
  • Welds any types of elecrode, including cellulosic
  • Electronic regulation of welding current
  • A.C. genearator, single phase and three -phase
  • Aux power also available while welding
  • ground fault interrupter
  • Sockets 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE - 1x48V 32A 2P CEE
  • LOMBARDINI diesel engine
  • Electric starter
  • protective frame
  • Manual trolly CTM (on request)
  • Welding remote control (on request)
  • Meets EC directives

  • 400V plug
  • Welding kit (mask, gloves etc.)

  • 230V plug
  • PB3 battery holder complete with battery

  • 48v plug
  • Earthing Kit

  • Remote control : TC2 (cable 20m - TC2/50 (cable 50m)
  • Manual trolley CTM6/2

  • Welding control : K190 (10+8m, 35mm square) , K200 (20+15m, 35mm square)


Technical data
WG 200 LDES/EL
D. C. WELDING (Constant Current)
Current range, continuous
20/170A
Service
170 A 60% - 130 A 100%
Duty Cycle
65 V
D. C. GENERATION - 50Hz
Three-phase asynycronous alternator, self- regulated, self excited, brushiess
Three - Phase Generation
6 kVA / 400 V / 8.7A
Single - Phase Generation
5 kVA / 230 V / 21.7A
Single - Phase Generation
2 kVA / 48 V / 41.6A
Insulation Class
H
ENGINE
Diesel, 4-stroke, direct injection, air cooled

Model
Lombardini 15LD440
* Output
6.8 kW (9.2 HP)
Speed
3000 rpm
Cyclinders/ Displacements
1/442 cm cube
Fuel Consumption (Welding 60%)
1.1 I/h
* Maximum output (not overloadable) according to ISO 3046-1.

GENERAL SPECIFICATIONS
Tank Capacity
5 l
Running Time (Welding 60%)
4.5 h
IP Protection degree
IP 23
* Dimensions LxIxh (mm)
900 x 550 x 620
* Dry Weight
130 kg
** Acoustic power LWA (Pressure LPA)
102 db(A) (77dB(A) @ 7 m)
* Values shown do not include trolleys. ** For fixed installation only
