- Arc welding source in D.C. welding.
- welds any type of electrode , including cellulosic
- High frequency control of welding current and voltage
- high performing alternator w/permanent magnets
- Single phase, 50Hz aux current, inverter generated
- Engine gasoline HONDA OHV
- Engine shut down (oil pressure)
- Power optimiser (patent pending)
- Economizer (Auto Idle)
- Protectove Frame
- Portable (57 Kg)
- Meets EC directives
|
|
|
| |
 |
|
- Welding kit (mask, gloves etc.)
|
| |
|
- PB3 battery holder complete with battery
|
| |
|
|
| |
- Welding cables : K190 (10+8m, 35mm square) , K200 (20+15m, 35mm square)
|
|
| |
- Remote control : TC2 (cable 20m - TC2/50 (cable 50m)
|
|
| |
|
|
 |
- Auxiliary output : 230 c.a. : 1x230V 16A 2P+T CEE
|
| |
- Auxiliary output : 230 c.a. : 1x230V 16A 2P+T schuko
|
|
|
Technical data |

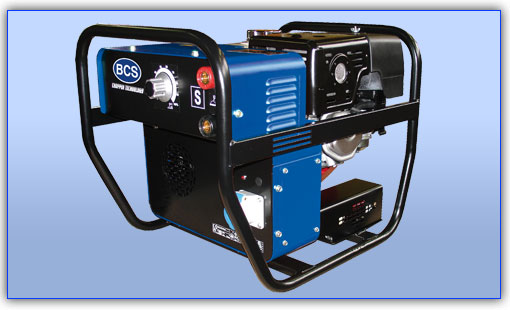

Magic Weld 200 |
|
D. C. WELDING (Constant Current) |
|
Current range, continuous |
20 - 200A |
Duty Cycle |
200 A -60% |
Open circuit voltage |
70 V |
|
A. C. GENERATION - 50Hz |
Magnet permanent alternator, self excited, brushless |
|
Single - Phase Power (Max) |
3 KVA / 230 V / 13 A |
Single - Phase Power (Continuous) |
2.5 KVA / 230 V / 10.9A |
Insulation Class |
H |
|
ENGINE |
Gasoline, 4-stroke, OHV, air cooled |
|
Model |
HONDA GX 270 |
* Output |
6.3 KW (8.5 HP) |
Speed |
3600rpm |
Displacements / Cyclinders |
270 cm cube/ 1 |
Fuel Consumption (Welding 60%) |
1.5 I/h |
Maximum output ( not overloadable) according to SAE J1349 |
|
|
Tank Capacity |
5.3 I |
Running Time (Welding 60%) |
3.5 h |
IP Protection degree |
IP 23 |
* Dimensions L x I x h (mm) |
610 x 490 x 520 |
* Dry Weight |
57 kg |
** Acoustic power LWA (Pressure LPA) |
99 db(A) (74 dB(A) @ 7 m) |
* Dimensions and weight without trolley/ trailer. ** For fixed installation only |
| |
|
|
| |
