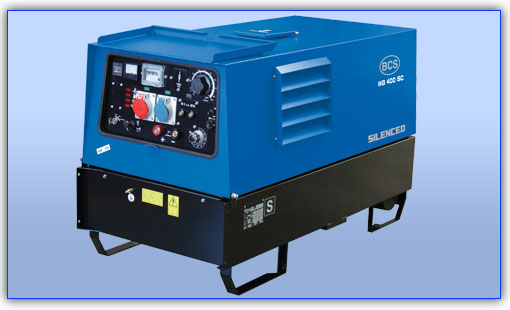

ENGINE DRIVEN WELDER WG 400 SC/EL - SXC/EL

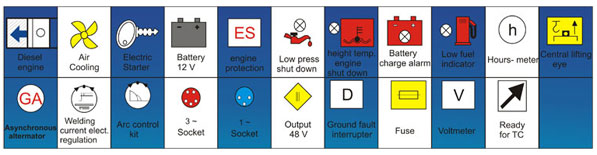

  • Arc welding source in D.C. welding
  • Welds any type of electrode, including cellulosic
  • Electronic regulation of welding current
  • A.C. generator, single phase and three phase
  • Aux power also available while welding
  • Ground fault interrupter
  • LOMBARDINI diesel engine
  • Electric Starter
  • Engine protection ES
  • Site tow CTL 400 (on request)
  • Welding remote control (on request)
  • Meets EC directives for noise and security




  • 400V plug
  • Remote control : TC2 (cable 20m -TC2/50degree (cable 50m)

  • 230V plug
  • Welding kit (mask, gloves etc.)

  • 48V plug
  • Earthing Kit

  • Tank locking cap
  • Site tow CTL400

  • Welding cables : K400 (20+15m, 50mm square)
  • Road trolley CTV4

  • Auxiliary output : 400Y - 230I -48I : 1x400V 32A 3P+N+T CEE -1X 230 V 32A 2P+T CEE

  • Auxiliary output : 400Y - 230I -1x400V 32A 3P+N+T CEE -2x230V 32A 2P+T CEE

  • Auxiliary output : 400Y - 230I -110I CTE : 1x400V 32A 3P+N+T CEE - 1x230V 32A 2P+T CEE - 1x110V 32A 2P+ T CEE

  • EP1 - Engine protection unit EP1 with Auto-Idle economiser (only SXC version)


Technical data
WG 400 SC
WG 400 SXC
D. C. WELDING (Constant Current)
Current range, continuous
20A / 400A
Service
400 A 35% - 350 A 60% - 300 A 100%
Duty Cycle
70 V
D. C. GENERATION - 50Hz
Three phase asyncronous, alternator, self excited, self regulated, brushless
Three - phase generation
13 kVA / 400 V / 18.7 A
Single - Phase generation
7 kVA / 230 V / 30.4 A
Single - Phase generation
3.5 kVA /110 V / 31.8 A
Single - Phase generation
5 kVA /48 V / 104 A
Insulation Class H
ENGINE
Diesel, 4-stroke, Direct injection, air cooled
Model
Lombardini 9LD625/2
* Output
18.8 kW (25.5 HP)
Speed
3000 rpm
Displacements / Cyclinders
2/1248 cmcube
Fuel Consumption (Welding 60%)
3.2 l/h
* Maximum output ( not overloadable) according to ISO 3046/1
GENERAL SPECIFICATIONS
Tank Capacity
26 I
Running Time (Welding 60%)
8 h
IP Protection degree
IP 23
* Dimensions L x I x h (mm)
1455 x 840 x 880
* Dry Weight
450 Kg
465 Kg
**measured Acoustic power LwA (Pressure LpA)
----
96 dB (A) 71dB (A) @7 M)
** Guaranteed Acoustic power LwA (Pressure LpA)
----
96 dB (A) 71dB (A) @7 M)
** Acoustic power LwA (Pressure LpA)
98 dB (A) 73 dB (A) @7 M)
-----
* Dimensions and weight without trolley/trailer. ** Acoustic power according to European Directive 2000/14/EC. ***For fixed installation only.
